RFID & PVC cards
A simple solution for difficult situations!

Simply put, RFID stands for increased revenues, enhanced quality control, and time and money-saving technology. Thanks to RFID, global businesses now don’t have to think of fraud or demand-supply management issues. Now a simple PVC or PC or PET-G smart card can do all the heavy work for you!

PVC or PC or PET-G materials provide better durability and improved shelf-life of the product, meaning the smart card will not only have opulent design possibilities but will also be the most robust, tamper resistant and cost effective option for you.

Additional Security Features:
Holograms, Continuous Guilloche, Rainbow, Micro Text, Hidden UV, OVI, MLI/CLI, Clear Window, DOVID, DOD

RFID & PVC cards
UHF-card

UHF Card

Material Used: PVC
Dimension: 85.6*54*(0.5+/-0.02)
Frequency: 860-950 MHz
Antenna: Wire Embedded (Round/Square) and Etched Antenna (Round/Square)

PET-G Card

Material Used: PET
Dimension: 85.6*54*(0.5+/-0.02)
Frequency: 13.56 MHz
Antenna: Wire Embedded (Round/Square)

RFID EM Card

Material Used: PVC
Dimension: 85.6*54*(0.5+/-0.02)
Frequency: 125 kHz
Antenna: Wire Embedded (Round/Square)

Contact Card

Contact Card

A standard-size plastic card that contains an embedded microchip that encrypts information to increase data security when making transactions or performing other operations at stores, terminals, or automated teller machines (ATMs).

NFC card

NFC Card

A single embedded chip that allows the card to be used in both contact and contactless transactions. The chip works in traditional physical EMV readers but also has radio technology that allows for contactless usage.

HF card

HF Card

A single embedded chip that allows the card to be used in both contact and contactless transactions. The chip works in traditional physical EMV readers but also has radio technology that allows for contactless usage.

Hybrid card

Hybrid Card

A standard-size plastic card that contains an embedded microchip that encrypts information to increase data security when making transactions or performing other operations at stores, terminals, or automated teller machines (ATMs).

Smart Sales Promotion

Smart Sales Promotion –
Offer more than just loyalty points!

1. Size- 86 mm x 54 mm
Thickness- 335 microns to 800 microns
ISO Manufactured with Plastic as the base material.
Options- With or without Magnetic stripe
Variable data printing – QR code, Barcode, Serial number, Encoding, Scratch label, etc.
Special Features – Microtext, Metallic prints
Perso Method – Laser Engraving, DOD, Thermal, etc.

2. Card size: 54 mm x 86 mm, Thickness: 600 GSM – 800 GSM
With 2- track or 3- track magnetic stripe encoding with Scratch label
Additional Print features like Spot UV, Matt, or Glossy Finish
Product barcode, Variable data QR code, and Barcode printing.
Variable data printing, magnetic stripe encoding, and scratch application in one pass for the security of data.

Gaming Zones | Food Courts | Parking Cards | Gift Cards

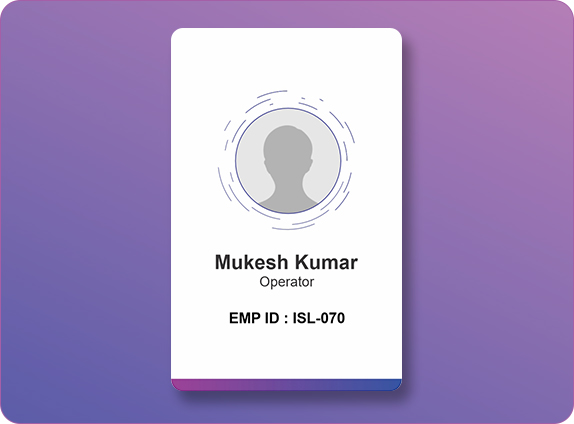

ID/E- governance Cards

ID/E- governance Cards
Giving more power to citizens

Governments worldwide prefer smart cards because of their unique combination of security and convenience. Ultra high frequency based Smart Cards can store data and other biometric information, which offer increased privacy and identity protection while at the same time educing fraud. In the modern digital world, our smart card capabilities cover a variety of uses such as voting, digital payment, and even personal identification.

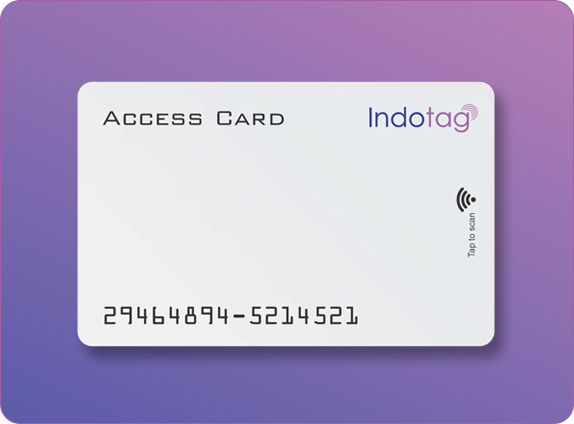

Access Control Cards

Access Control Cards
A lifetime of leak-proof security guaranteed

Smart cards offer a variety of benefits for enterprises, whether for physical or logical access control. They can be used as a replacement for keys; they enable multi-technology readers to be installed throughout a facility and offer greater flexibility than traditional proximity badges. Unlike its predecessors, the magnetic stripes, limited to read-only capabilities, the ultra-high frequency enabled smart cards offer a wider range of services like receiving, storing, updating, and making decisions about data. This itself is a significant advantage.

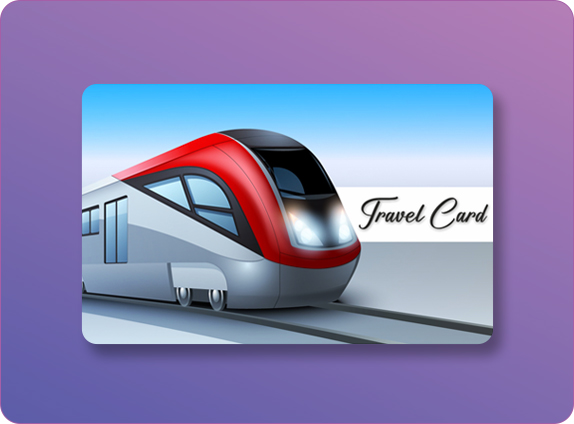

Transport Cards

Transport Cards
Transport made faster, smoother and convenient

By providing easy, fast, and convenient payment options for riders, smart card systems help reduce costs and inconveniences to the public and support the modernization of transit operations. The implementation of smart cards in transport systems aims to fulfil a range of benefits, including increased security, modernization of the fare collection process, reduced costs for the card issuer, and improved customer service.

Health Cards

Health Cards
Access healthcare anytime, anywhere!

Smart cards, the most popular form of multi-factor authentication, are helping healthcare organizations around the world to better protect their patients. Multifactor authentication using graphical passwords, PINs, and biometrics promises seamless patient identification, mitigates financial complexities for organizations, and offers prompt emergency support.
While on the one hand, customer reliability deepens, on the other administrative efficiency also increases. This combination results in improved quality of healthcare services.

Telecom Cards

Telecom Cards
Stay connected to things that matter!

The use of smart cards in telecommunications is snowballing as the need for enhanced security, flexibility, and interoperability increases. Smart card technology offers authentication and identification capabilities that can control access to services and applications, dramatically reducing fraud by helping prevent unauthorized usage of mobile devices.

INLAYS
Increase efficiency,
decrease production cost!

The combination of integrated antenna electromagnetically connected with inductive coupling has made deep impact in the industry as the most reliable
Coil-on-Module design for modern inlays.
Now fast-track inventory and seamlessly manage market distribution with our Dual-Interface Inlays.

Layouts Offered:
3×8 Format | 3×7 Format | Combi Inlay HF+UHF | Hybrid card

Prelam Sheet

Prelam Sheet (Inlay for Contactless Smart Card)

  • Customizable
  • Copper Antenna
  • 13.5 – 18.0 MHz frequency
  • Mifare and Desfire Chips
  • Lifetime >10 years
  • Write Endurance – 100,000 cycles
  • Reading distance – 6-10 cm depending on working conditions and reader
  • Application – Transportation, Asset management, Retail, Medicines

HF Inlay (Dry and Wet Inlay)

  • Customizable
  • Aluminium antenna and PET+ Aluminium material
  • 860 – 960 MHz frequency
  • Alien H3 Impinjm4D, M4QT, U-code-7/8 Chip
  • Lifetime >10 years
  • Write Endurance – 100,000 cycles
  • Reading distance – 0-10 m depending on working conditions and reader
  • Application – Transportation, Asset management, Retail, Medicines
DI Inlay

DI Inaly

  • Customizable
  • Copper Antenna
  • 13.5 – 18.0 MHz frequency
  • Mifare, and Desfire Chips
  • Lifetime >10 years
  • Write Endurance – 100,000 cycles
  • Reading distance – 6-10 cm depending on working conditions and reader
  • Application – Transportation and Banking

SMART DOCUMENT
Maximum security for high-value documents

A ‘Smart Document’ uses RFID-based identity technology, which means you can completely digitalize and track documents without worrying about misplacing them EVER.

RFID-based Smart Documents help to curb forgery by enabling instantaneous verification of its authenticity. The Smart document can include all vital information, encoded and stored on an RFID label. A reader system can decode this information effectively; even some smartphone Apps can instantly verify such certificates. It is of immense benefit to universities as it protects and secures the integrity of their graduation certificate and reduces administrative work.

Your information remains discreet and protected from any unauthorised or fraudulent use.
Real Estate Records | Academic Institutions | Transportation etc.

NFC TAGS
A leak-proof intuitive technology for your sensitive data.

NFC acts as a wireless bridge between devices and transmits data from one device to another using a magnetic field resulting from electromagnetic induction between two devices in close proximity. The resulting communication does not require cell towers making it more discreet than other forms of communication.

  • Intuitive device pairing
  • Optimum Transaction security
  • Zero power consumption

Material used – PVC, PC, PET-G, ABS
Custom sizes available
13.56 MHz Frequency
Application – Mobile Payment, Device Pairing, Smart Poster Reading, Peer to Peer Information Exchange

Brand Part Number Frequency Description Remark
NXP (Philips) NTAG203 13.56 MHz R/W, 144 Byte (User Memory) ISO 14443 Type A
MIFARE Ultralight 13.56 MHz R/W, 512 Bit ISO 14443 Type A
MIFARE Ultralight C 13.56 MHz R/W, 1536 Bit (192 Byte) ISO 14443 Type A
Infineon SLE 66R01PN 13.56 MHz R/W, 1216 Bit ISO 14443 Type A
NXP (Philips) MIFARE DESFire Ev1 13.56 MHz R/W, 2k/4k/8k Byte ISO 14443 Type A

UHF TAGS
Best performing even in the most challenging environments.

UHF systems transfer data at a fast rate, which increases inventory visibility, helps automate workflow, prevents the use of recalled/expired products, and reduces depreciation costs.

UHF RFID systems function within a frequency range of 865-960 MHz and have the potential to enhance inventory management processes. The utilization of UHF devices can lead to increased accuracy in domestic control data, ultimately resulting in reduced stock levels. Additionally, these systems offer maximum traceability, high reading speeds, and streamlined product management capabilities.
Material used – PVC, PC, PET-G, ABS
Custom sizes available
860 – 950 MHz Frequency
Application – Tracking, Inventory Control, Anticounterfeiting etc..
